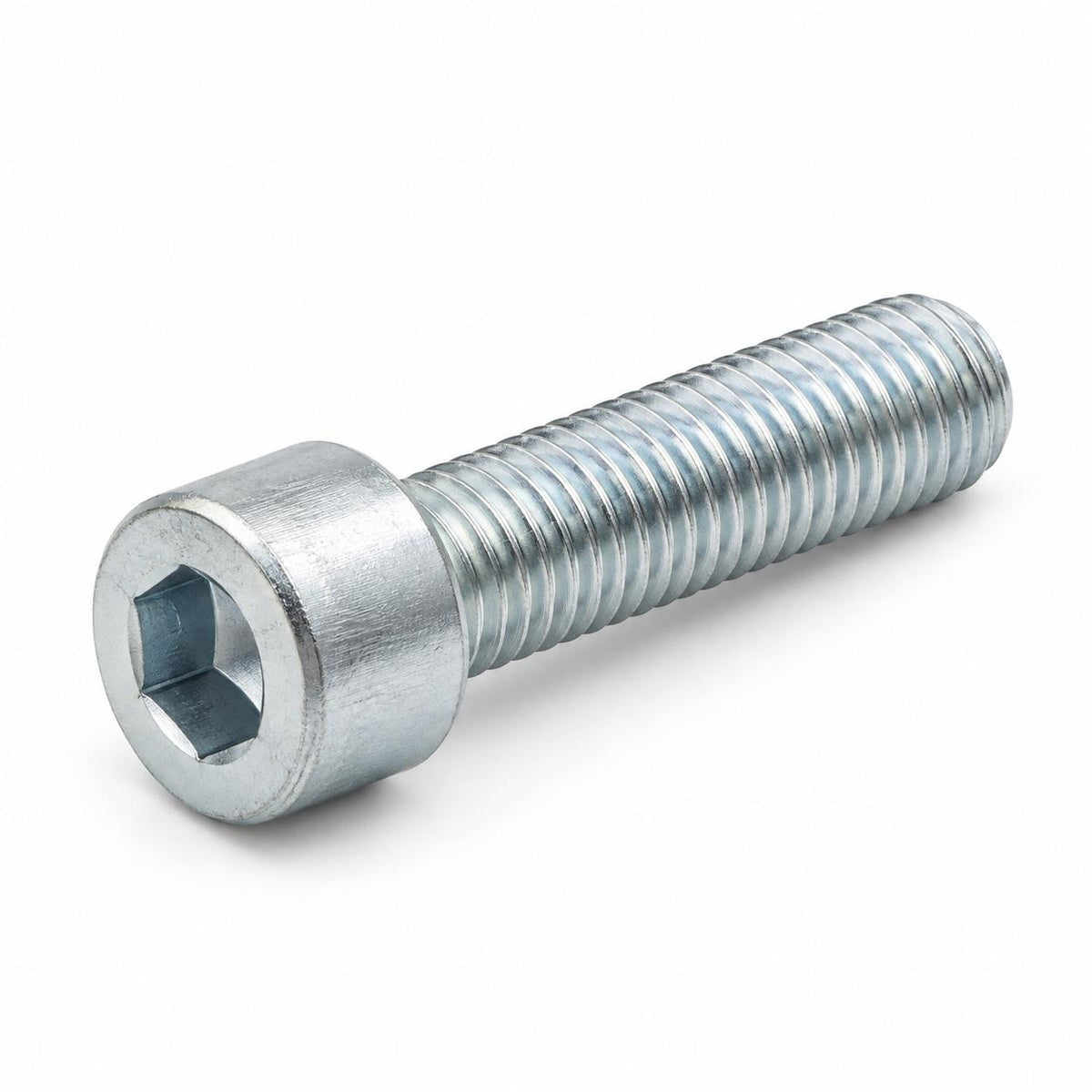

Zylinderschraube DIN 912 M4 8-8 silber verzinkt Innensechskant

Zylinderschraube DIN 912 M4 8-8 silber verzinkt Innensechskant

€1,20 EUR
€0,00 EUR €1,20 EUR
Clearance Sold out
Including taxes. Shipping

DELIVERY TIME:1–3 BUSINESS DAYS**

Länge
Anzahl

Decorative items are not included.

Technische Details:
- Typ: Zylinderschraube
- Norm: DIN 912 / ISO 4762
- Gewinde: Gemäß gewählter Variante
- Festigkeit: 8-8
- Oberfläche: silber verzinkt
- Antrieb: Innensechskant
- Länge: Gemäß gewählter Variante

Diese Zylinderschraube nach DIN 912 / ISO 4762 ist gefertigt aus Stahl und verfügt über eine silber verzinkte Oberfläche.

Bei Feingewinde wird die Steigung angegeben, bei Regelgewinde nicht.

Synonyme Bezeichnungen:

  • Zylinderkopfschraube
  • Innensechskant-Schrauben
  • Zylinderschrauben mit Innensechskant
  • Innensechsrundschrauben

Abmessungen (siehe Zeichnung in den Bildern):

  • b = Länge des Gewindes (kann fertigungsbedingt abweichen oder größer sein. Bitte vor Bestellung kontaktieren, wenn bestimmte Längen gewünscht sind.)
  • s = Schlüsselweite
  • k = Höhe des Kopfes

*Abmessungen sind nicht genormt, sondern Richtwerte.

Gewindegröße (M) Kopfhöhe (k) Kopfdurchmesser (dk) Max. Gewindelänge (b) Schlüsselweite (s) Gewindesteigung (p)
M3 3,00 mm 5,50 mm 18 mm 2,5 mm 0,50 mm
M4 4,00 mm 7,00 mm 20 mm 3,0 mm 0,70 mm
M5 5,00 mm 8,50 mm 22 mm 4,0 mm 0,80 mm
M6 6,00 mm 10,00 mm 24 mm 5,0 mm 1,00 mm
M8 8,00 mm 13,00 mm 28 mm 6,0 mm 1,25 mm
M10 10,00 mm 16,00 mm 32 mm 8,0 mm 1,50 mm
M12 12,00 mm 18,00 mm 36 mm 10,0 mm 1,75 mm

(Die gezeigten Produktbilder sind Beispielabbildungen zur groben Orientierung von Form und Farbe. Abmessungen und Materialien können variieren – maßgeblich ist die Artikelbeschreibung.)
