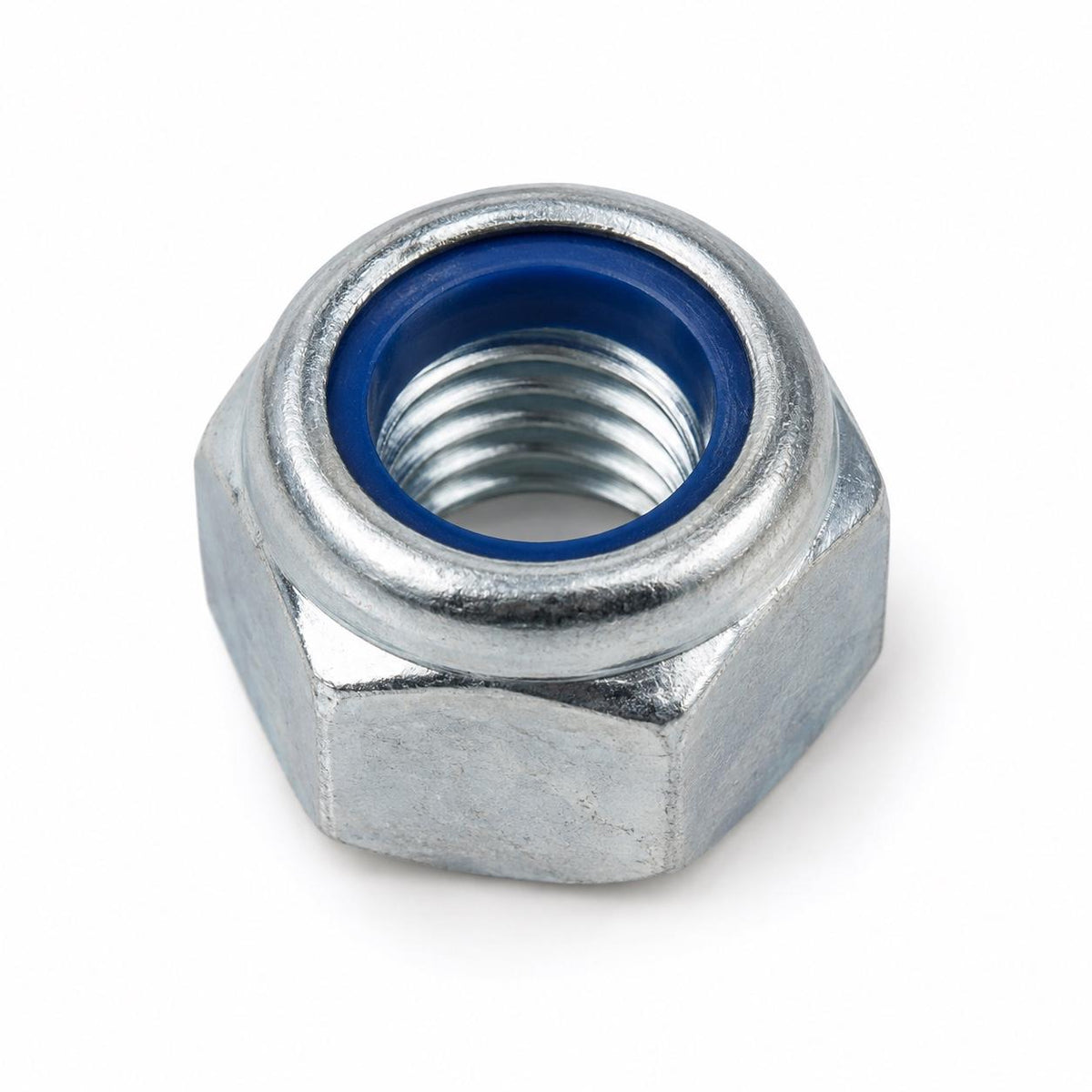

Sicherungsmutter DIN 985 M6 silber verzinkt

Sicherungsmutter DIN 985 M6 silber verzinkt

€0,80 EUR
€0,80 EUR
Clearance Sold out
Including taxes. Shipping

DELIVERY TIME:1–3 BUSINESS DAYS**

Anzahl

Decorative items are not included.

Technische Details:
- Typ: Sicherungsmutter mit Kunststoffring
- Norm: DIN 985
- Gewinde: Regelgewinde, Steigung bei Feingewinde angegeben
- Oberfläche: silber verzinkt
- Form: Sechskantmutter mit Kunststoff-Sicherungseinsatz
- Funktion: Selbstsichernd

Diese DIN 985 Sicherungsmutter ist mit einem Kunststoffring ausgestattet, der ein Lösen durch Vibrationen verhindert.

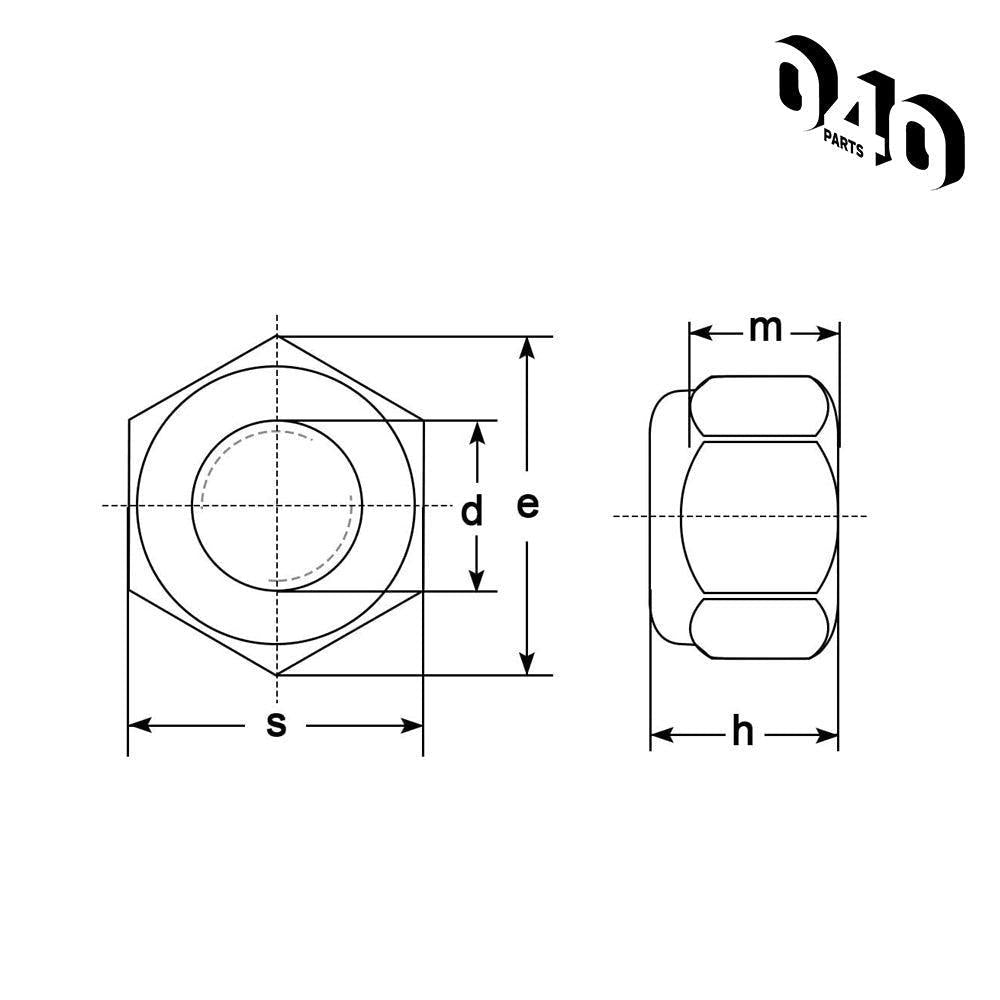

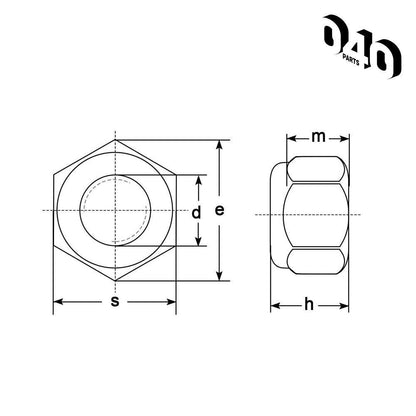

Abmessungen (siehe Zeichnung in den Bildern):

  • M = Nenngröße (Gewindegröße)
  • s = Schlüsselweite
  • m = Höhe der Mutter
Gewindegröße (M) Schlüsselweite (s) Mutternhöhe (m)
M4 7,0 mm 3,2 mm
M5 8,0 mm 4,0 mm
M6 10,0 mm 5,0 mm
M8 13,0 mm 6,5 mm
M10 17,0 mm 8,0 mm
M12 19,0 mm 10,0 mm

(Maße sind Richtwerte nach DIN 985. Abweichungen möglich. Bitte Artikelbeschreibung beachten.)
