Senkkopfschraube ISO 10642 M4 8-8 schwarz verzinkt Innensechskant
Senkkopfschraube ISO 10642 M4 8-8 schwarz verzinkt Innensechskant
DELIVERY TIME:1–3 BUSINESS DAYS**
Couldn't load pickup availability
Decorative items are not included in the scope of services.
Technische Details:
- Typ: Zylinderschraube
- Norm: ISO 10642 (ehemals DIN 7991)
- Gewinde: Gemäß gewählter Variante
- Festigkeit: 8-8
- Oberfläche: schwarz verzinkt
- Antrieb: Innensechskant
- Länge: Gemäß gewählter Variante
Diese Senkschraube mit Innensechskant nach ISO 10642 (ehemals DIN 7991) ist gefertigt aus hochwertigem Stahl und verfügt über eine schwarz verzinkte Oberfläche. Sie eignet sich optimal für professionelle und private Anwendungen, bei denen die Schraubenköpfe bündig mit der Oberfläche abschließen sollen.
Bei Feingewinde wird die Steigung angegeben, bei Regelgewinde nicht.
Synonyme Bezeichnungen:
- Senkkopfschraube mit Innensechskant
- Innensechskant-Senkschraube
- Senkschraube
- Flachkopfschraube mit Innensechskant

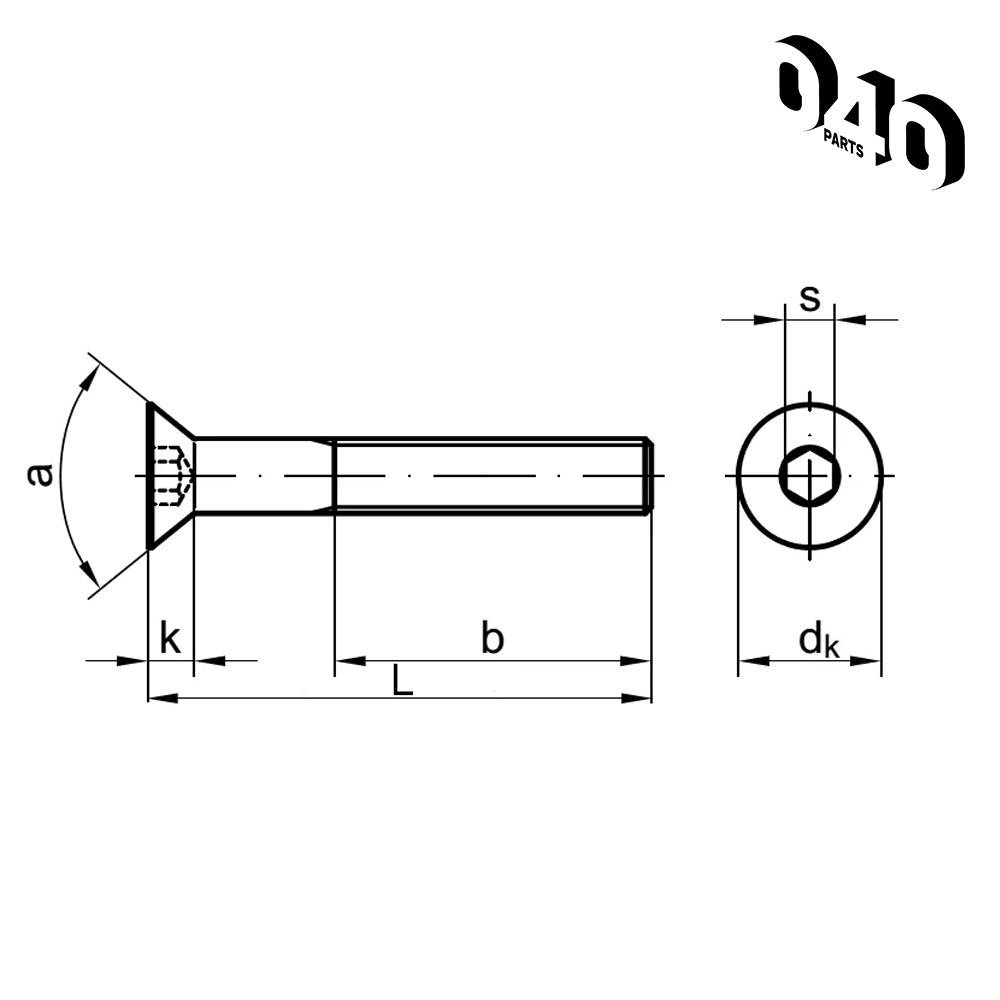

Abmessungen (siehe Zeichnung in den Bildern):
- b = Länge des Gewindes (kann fertigungsbedingt abweichen oder größer sein. Bitte vor Bestellung kontaktieren, wenn bestimmte Längen gewünscht sind.)
- s = Schlüsselweite
- k = Kopfhöhe (Höhe des Senkkopfes)
- dk = Kopfdurchmesser
*Abmessungen sind nicht genormt, sondern Richtwerte.
Gewindegröße (M) | Kopfhöhe (k) | Kopfdurchmesser (dk) | Max. Gewindelänge (b) | Schlüsselweite (s) | Gewindesteigung (p) |
---|---|---|---|---|---|
M3 | 1,65 mm | 6,72 mm | 18 mm | 2,0 mm | 0,50 mm |
M4 | 2,20 mm | 8,96 mm | 20 mm | 2,5 mm | 0,70 mm |
M5 | 2,50 mm | 11,20 mm | 22 mm | 3,0 mm | 0,80 mm |
M6 | 3,00 mm | 13,44 mm | 24 mm | 4,0 mm | 1,00 mm |
M8 | 4,00 mm | 17,92 mm | 28 mm | 5,0 mm | 1,25 mm |
M10 | 5,00 mm | 22,40 mm | 32 mm | 6,0 mm | 1,50 mm |
M12 | 6,00 mm | 26,88 mm | 36 mm | 8,0 mm | 1,75 mm |

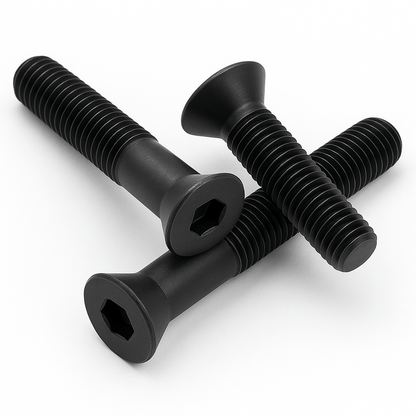

(Die gezeigten Produktbilder sind Beispielabbildungen zur groben Orientierung von Form und Farbe. Abmessungen und Materialien können variieren maßgeblich ist die Artikelbeschreibung.)
