Sechskantschraube DIN 933 M6 8-8 silber verzinkt

Sechskantschraube DIN 933 M6 8-8 silber verzinkt

€1,20 EUR
€1,20 EUR
Clearance Sold out
Including taxes. Shipping

DELIVERY TIME:1–3 BUSINESS DAYS**

Länge
Anzahl

Decorative items are not included.

Technische Details:
- Typ: Sechskantschraube mit Vollgewinde
- Norm: DIN 933
- Gewinde: Vollgewinde, gemäß gewählter Variante
- Festigkeit: 8.8 (Standard), weitere Klassen möglich
- Oberfläche: silber verzinkt
- Kopf: Sechskantkopf
- Länge: Gewindelänge gem. Variante

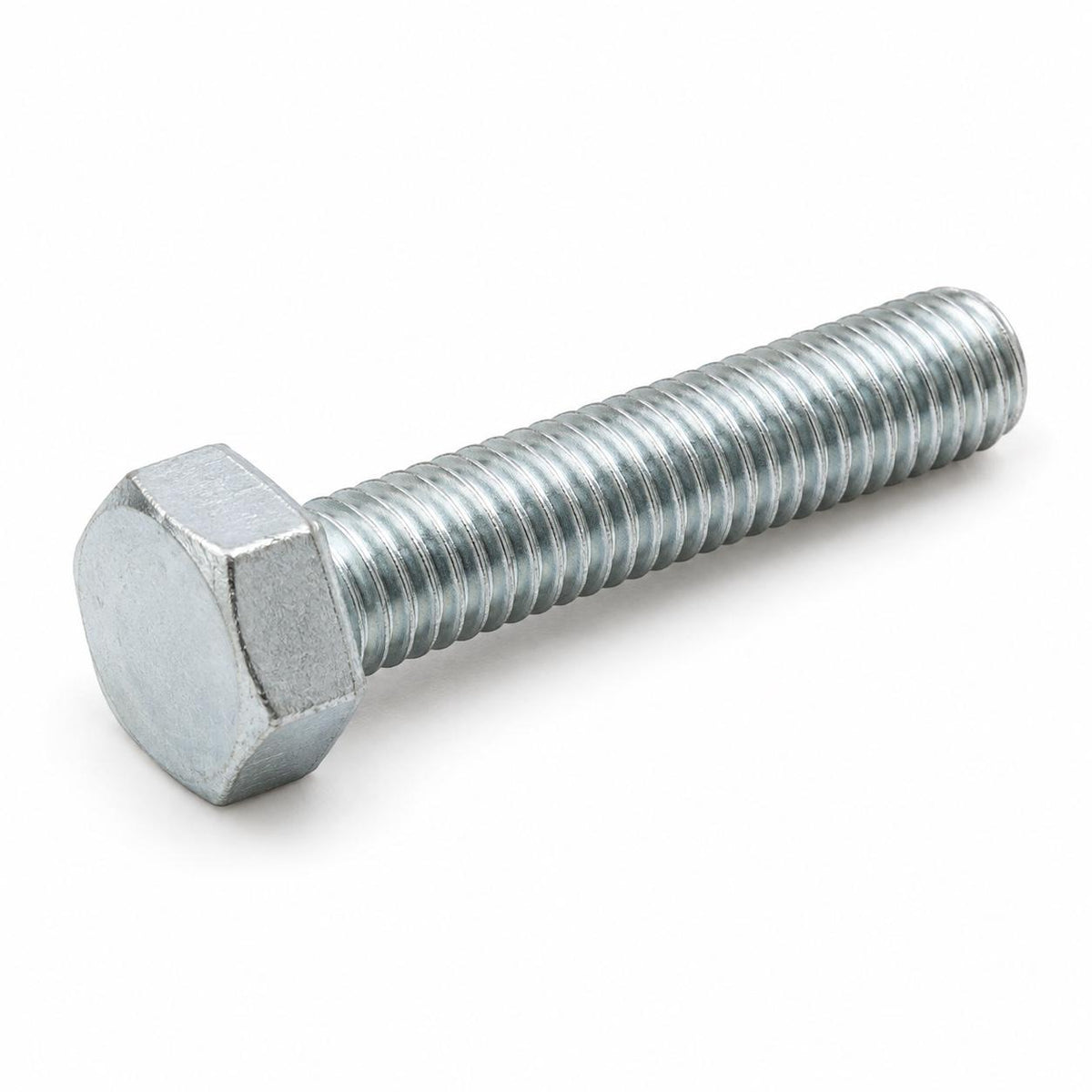

Diese DIN 933 Sechskantschraube mit Vollgewinde ist aus Stahl gefertigt und silber verzinkt.

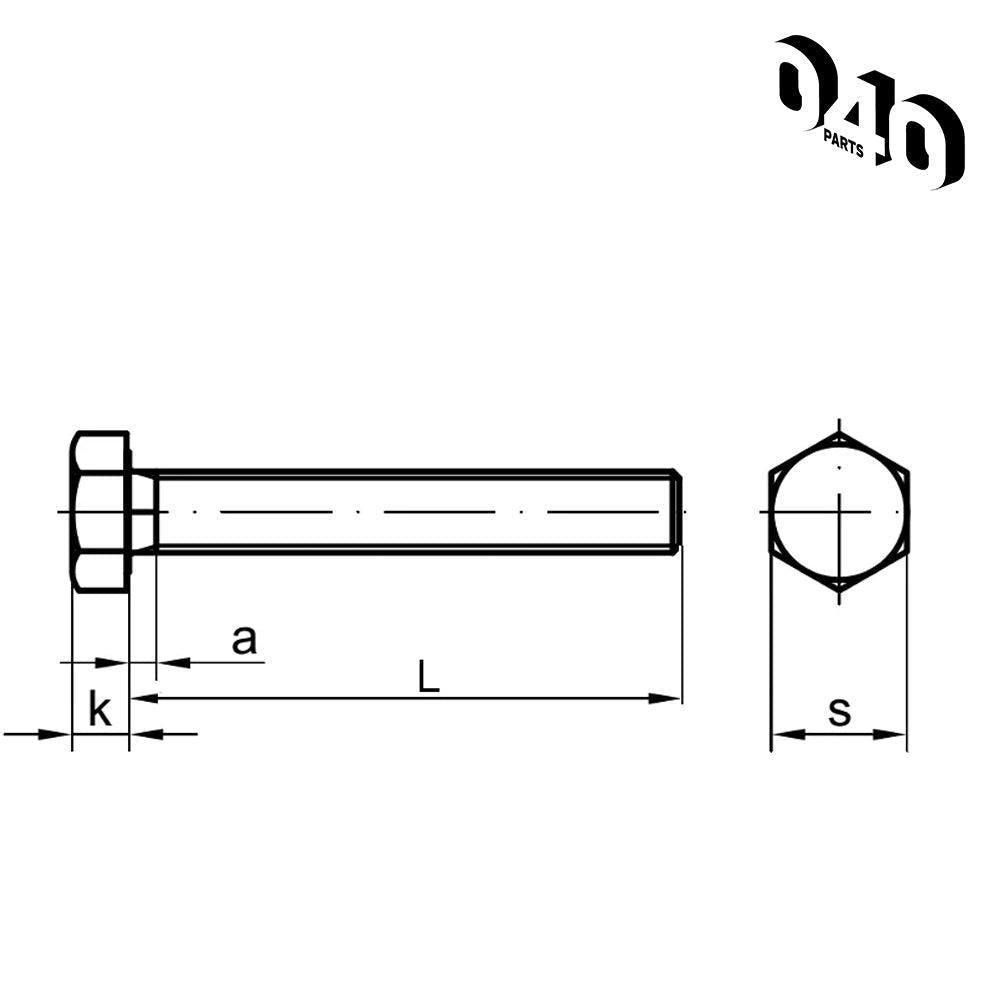

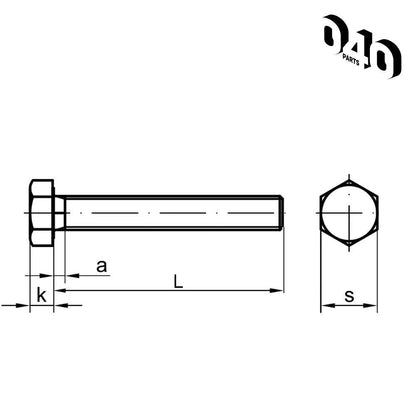

Abmessungen (siehe Zeichnung in den Bildern):

  • d = Nenndurchmesser (Gewindegröße)
  • l = Gewindelänge der Schraube
  • s = Schlüsselweite
  • k = Kopfhöhe
Gewindegröße (M) Schlüsselweite (s) Kopfhöhe (k) Gewindesteigung (p)
M4 7,0 mm 3,2 mm 0,7 mm
M5 8,0 mm 4,0 mm 0,8 mm
M6 10,0 mm 4,8 mm 1,0 mm
M8 13,0 mm 6,4 mm 1,25 mm
M10 17,0 mm 8,0 mm 1,5 mm
M12 19,0 mm 9,6 mm 1,75 mm

(Maße sind Richtwerte nach DIN 933. Abweichungen möglich. Bitte Artikelbeschreibung beachten.)
