Hexagon head screw DIN 933 M6 8-8 black zinc plated
Hexagon head screw DIN 933 M6 8-8 black zinc plated
DELIVERY TIME:1–3 BUSINESS DAYS**
Availability for pickups could not be loaded
Decorative items are not included in the scope of services.
Technical Details:
- Type: Hexagon bolt with full thread
- Standard: DIN 933
- Thread: Full thread, according to chosen variant
- Strength: 8.8 (standard), other grades possible
- Surface: black zinc-plated
- Head: Hexagon head
- Length: Thread length according to variant

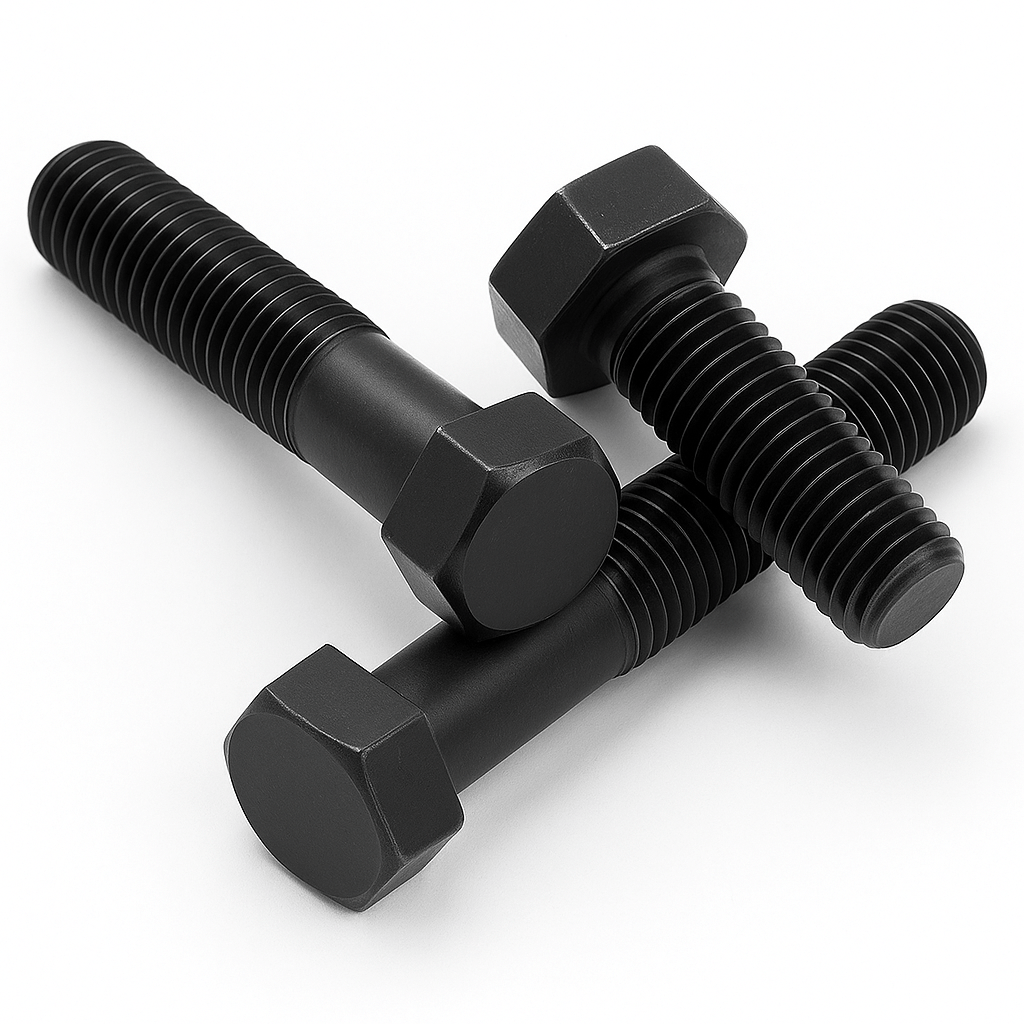

This DIN 933 hexagon bolt with full thread is made of high-quality steel and black zinc-plated. Ideal for sturdy connections in many applications.

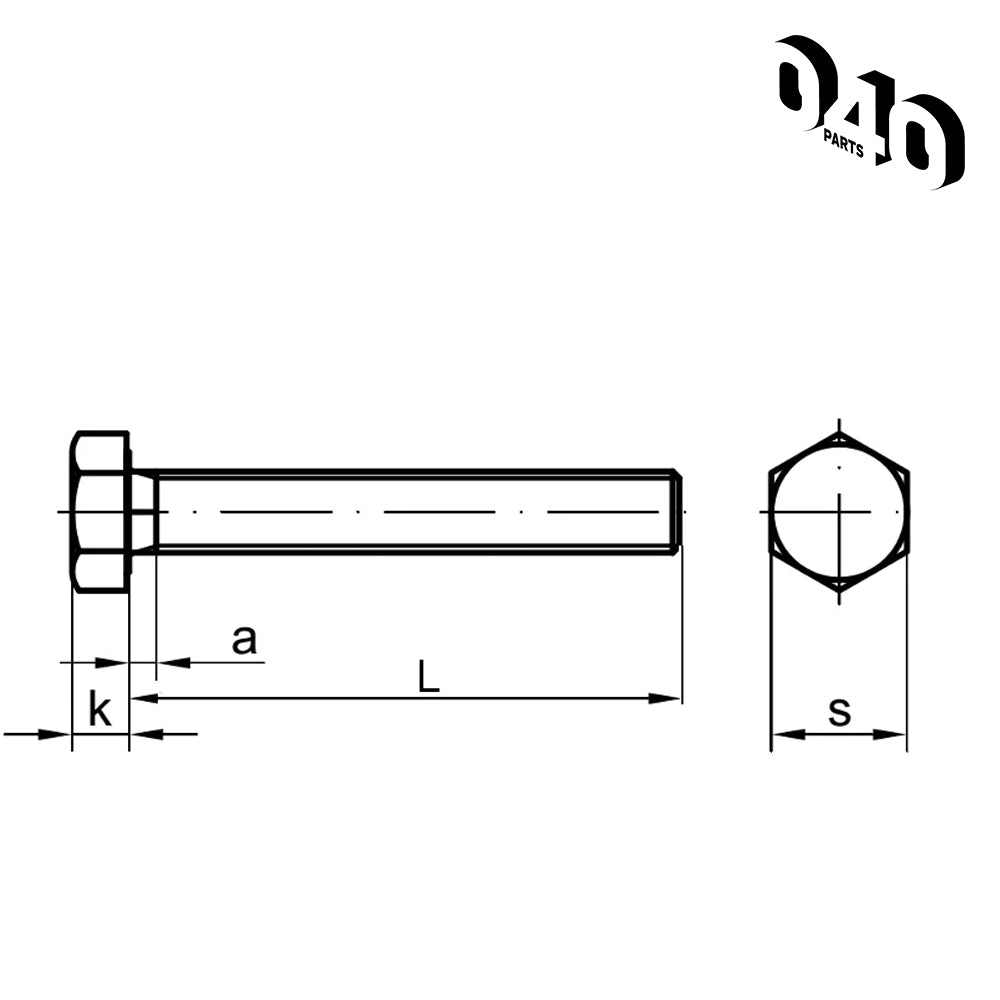

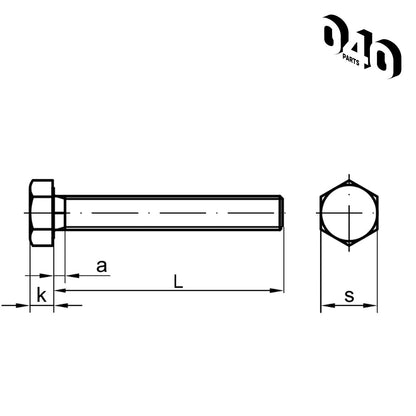

Dimensions (see drawing in the images):
- d = Nominal diameter (thread size)
- l = Thread length of the bolt
- s = Wrench size
- k = Head height
| Thread size (M) | Wrench size (s) | Head height (k) | Thread pitch (p) |
|---|---|---|---|
| M4 | 7.0 mm | 3.2 mm | 0.7 mm |
| M5 | 8.0 mm | 4.0 mm | 0.8 mm |
| M6 | 10.0 mm | 4.8 mm | 1.0 mm |
| M8 | 13.0 mm | 6.4 mm | 1.25 mm |
| M10 | 17.0 mm | 8.0 mm | 1.5 mm |
| M12 | 19.0 mm | 9.6 mm | 1.75 mm |
(Dimensions are approximate values according to DIN 933. Deviations possible. Please note product description.)
