Socket Head Cap Screw DIN 912 M4 8.8 Black Zinc Plated Hex Socket
Socket Head Cap Screw DIN 912 M4 8.8 Black Zinc Plated Hex Socket
DELIVERY TIME:1–3 BUSINESS DAYS**
Availability for pickups could not be loaded
Decorative items are not included in the scope of services.
Technical Details:
- Type: Socket Head Cap Screw
- Standard: DIN 912 / ISO 4762
- Thread: According to selected variant
- Strength: 8.8
- Surface: Black zinc plated
- Drive: Hex Socket
- Length: According to selected variant
This socket head cap screw according to DIN 912 / ISO 4762 is made from high-quality steel and features a black zinc-plated surface. Perfect for professional and private applications.
For fine thread, the pitch is indicated; for coarse thread it is not.
Synonymous names:
- Socket Head Cap Screw
- Hex Socket Screws
- Socket Head Screws
- Inhex Screws

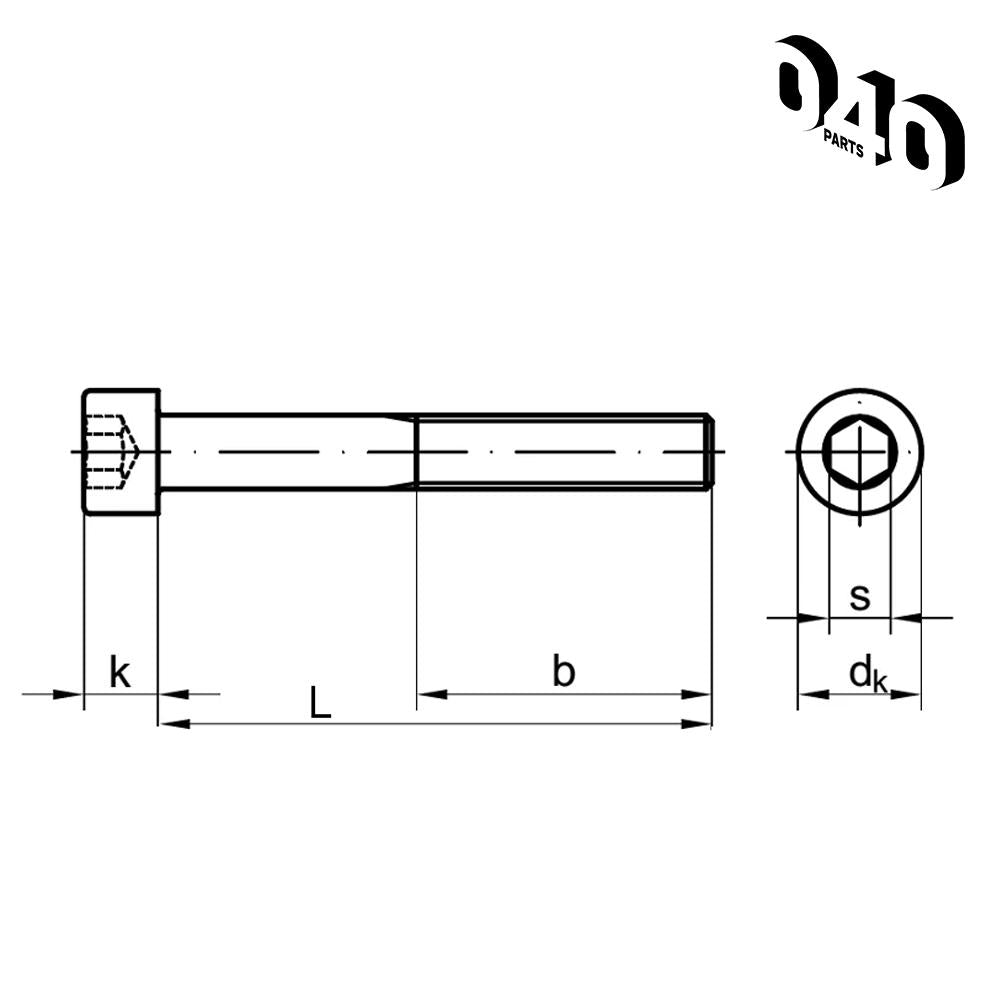

Dimensions (see drawing in images):
- b = Thread length (may vary due to manufacturing or may be larger. Please contact before ordering if specific lengths are required.)
- s = Wrench size
- k = Head height
*Dimensions are not standardized, but reference values.
| Thread Size (M) | Head Height (k) | Head Diameter (dk) | Max. Thread Length (b) | Wrench Size (s) | Thread Pitch (p) |
|---|---|---|---|---|---|
| M3 | 3.00 mm | 5.50 mm | 18 mm | 2.5 mm | 0.50 mm |
| M4 | 4.00 mm | 7.00 mm | 20 mm | 3.0 mm | 0.70 mm |
| M5 | 5.00 mm | 8.50 mm | 22 mm | 4.0 mm | 0.80 mm |
| M6 | 6.00 mm | 10.00 mm | 24 mm | 5.0 mm | 1.00 mm |
| M8 | 8.00 mm | 13.00 mm | 28 mm | 6.0 mm | 1.25 mm |
| M10 | 10.00 mm | 16.00 mm | 32 mm | 8.0 mm | 1.50 mm |
| M12 | 12.00 mm | 18.00 mm | 36 mm | 10.0 mm | 1.75 mm |

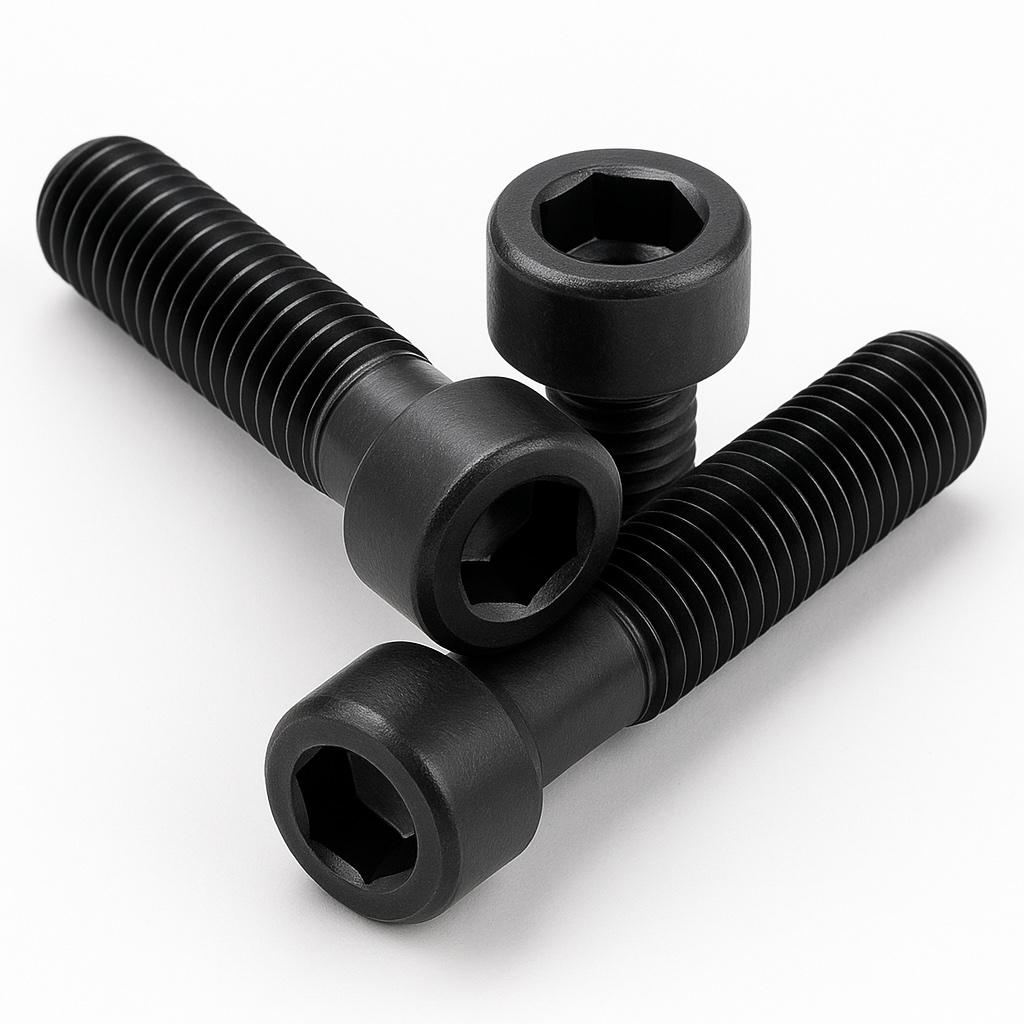

(The product images shown are representative illustrations for general orientation regarding shape and color. Dimensions and materials may vary – the article description is authoritative.)
